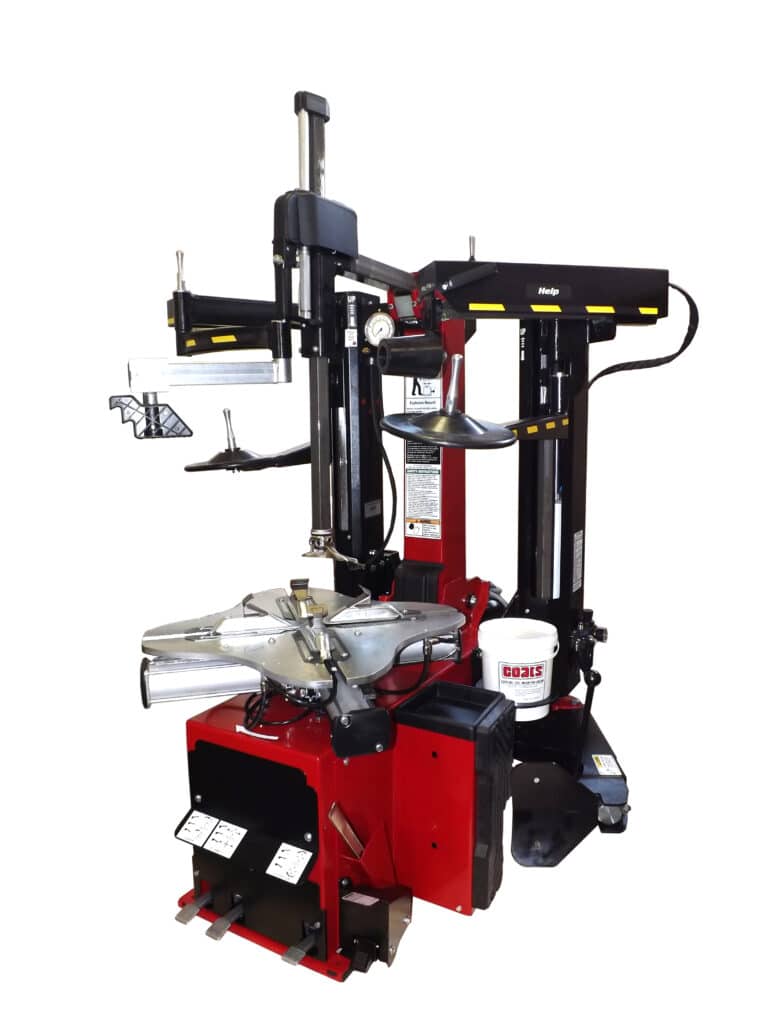

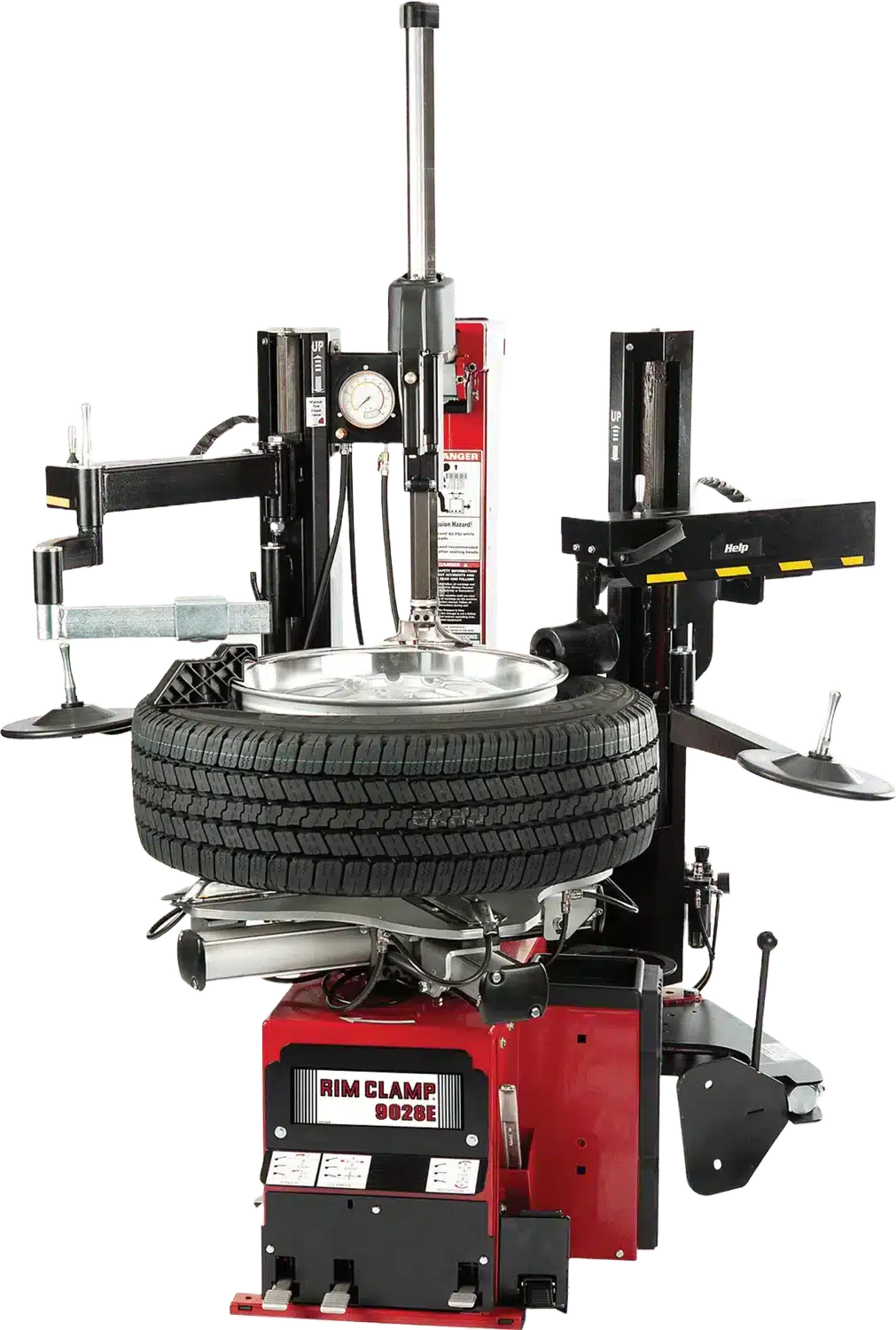

Coats 9028E Rim Clamp Tire Changer

Coats 9028E Rim Clamp Tire Changer

Power source
Do You Need Lift Gate Delivery? (Required)
Regular price $12,658.00 USD
Regular price Sale price $12,658.00 USD
Sale Sold out
Shipping calculated at checkout.

Financing Available

Car and Light Truck

10" - 28" External Rim Diameter

47" Max Tire Diameter

14" Max Rim Width

Foot Control Bead Loosening System

Tilt Back Mount/ Dismount System

Lower Bead Roller Disks

Upper Bead and Power Taper Rollers

Bead Pressing Arm

4 Clamp, Cylinder Geared Actuation

125 V, 60Hz,, Electric Motor

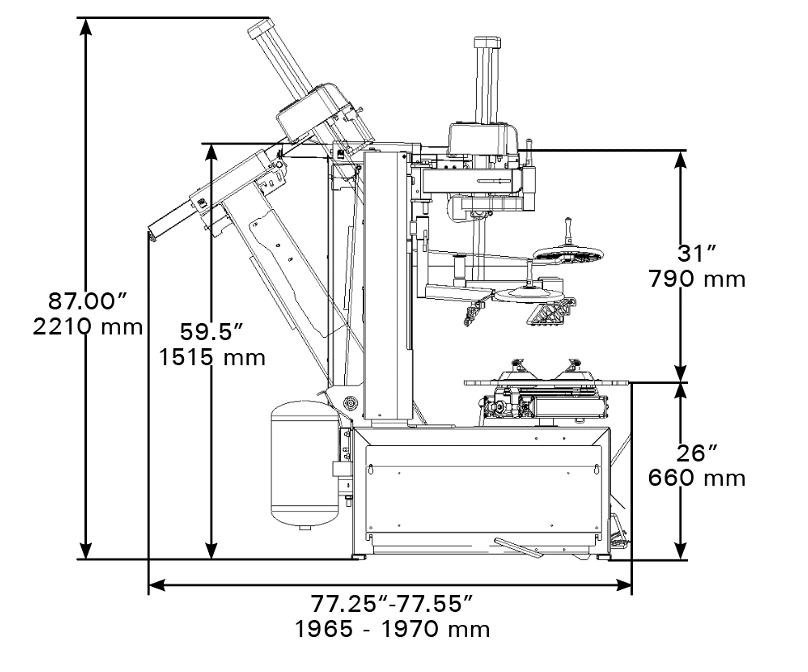

79"w x 76” x 86"h Footprint

Tilt Back Tower

Angled for no interference on second bead removal. Now tilts farther for more clearance.

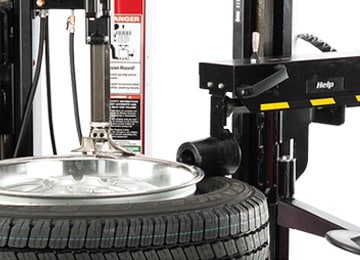

Power Devices

Power taper rollers, pneumatic drop center, and swing-in rollers handle approximately 90% of the effort required to change even the toughest tires. Technicians can concentrate on efficiency.

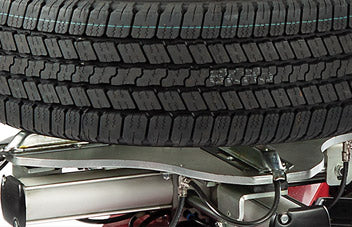

Clamps Wheels Externally Up To 28”

Wheels keep getting bigger and more expensive. The Coats 9028E allows you to change tires on oversized wheels while providing complete protection. You can service the expanding market for custom alloy wheels.

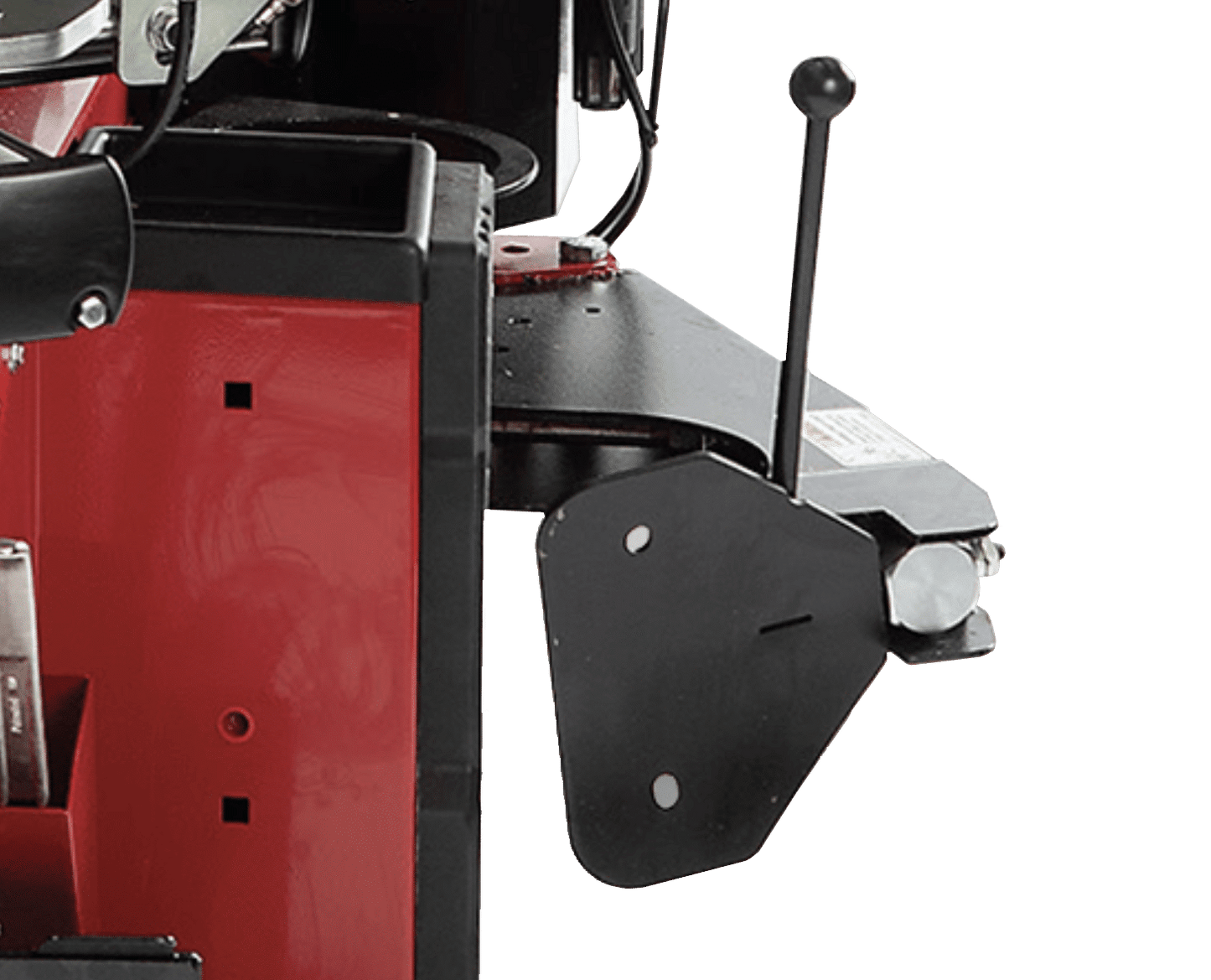

Protect Rims with the Cam Bead Loosener

This double pivoting, cam operated bead loosener allows for straight-lined bead loosening. This prevents the wheel assembly from twisting, which could otherwise lead to damaged rims.

Product Brochure

Product Manual

Warranty

View full details
