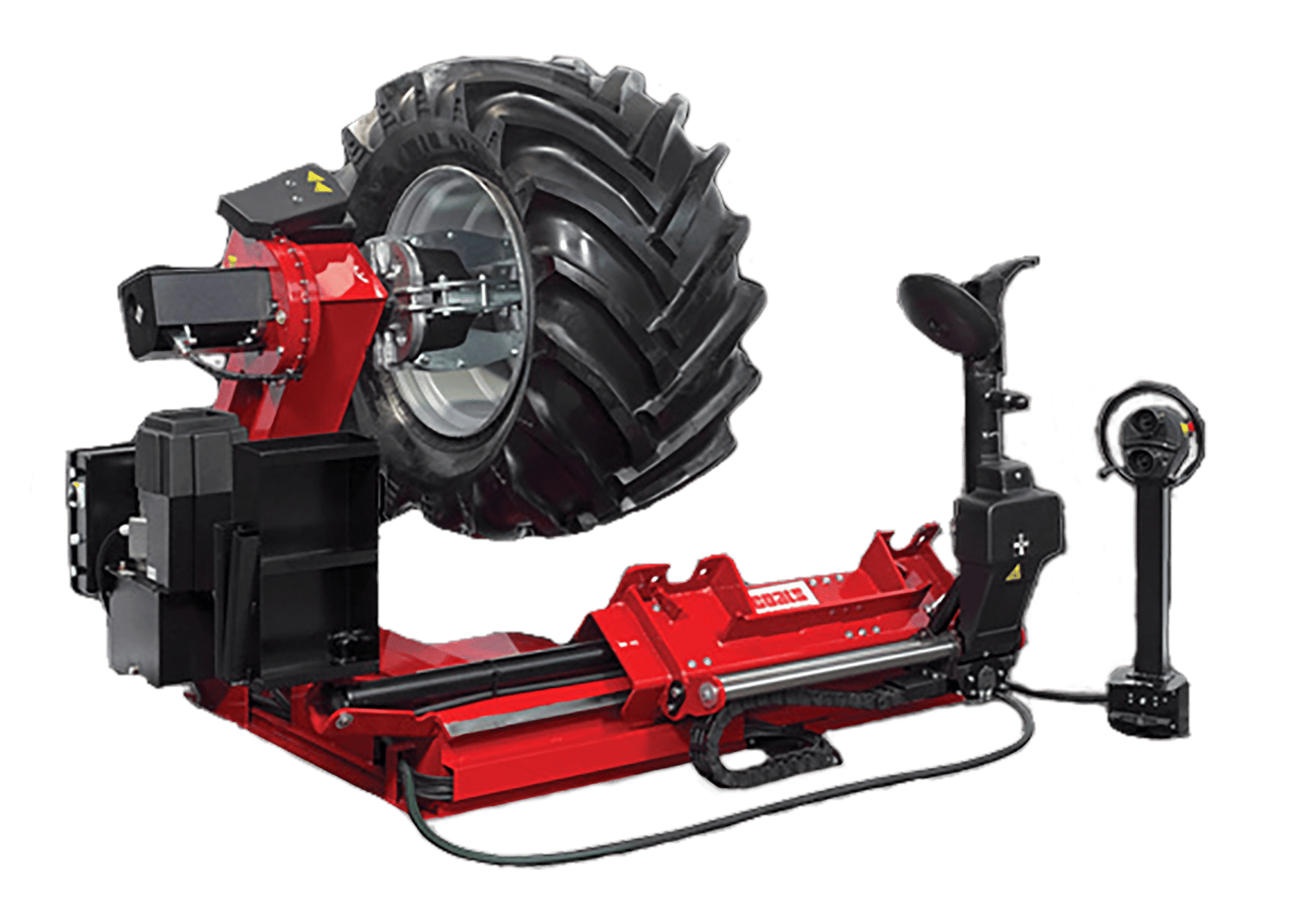

Coats CHD-9551 Heavy Duty Tire Changer

Power source ELECTRIC 220V/3 PHASE (8009551)

Do You Need Lift Gate Delivery? (Required) Yes I need it lift gated (+ $95) No I can get it off the truck

$38,395.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Financing Available

Heavy Duty

14" - 46" (up to 56” with extensions) External Rim Diameter

95" Max Tire Diameter

30.5" Max Rim Width

Remote Positioned Tool Head/Arm

Optional Wireless Control Unit

4 Jaw Chuck Wheel Clamp

2.9HP, Hydraulic Motor Power

112”w x 81”d x 75”h Footprint

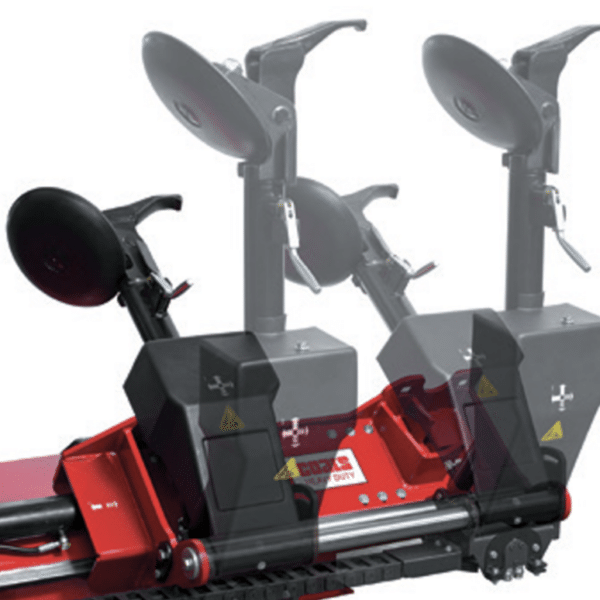

Fully Automated Tool Arm

Remote controlled, hydraulically operated tool arm saves operator effort and speeds tire-changing turnaround time.

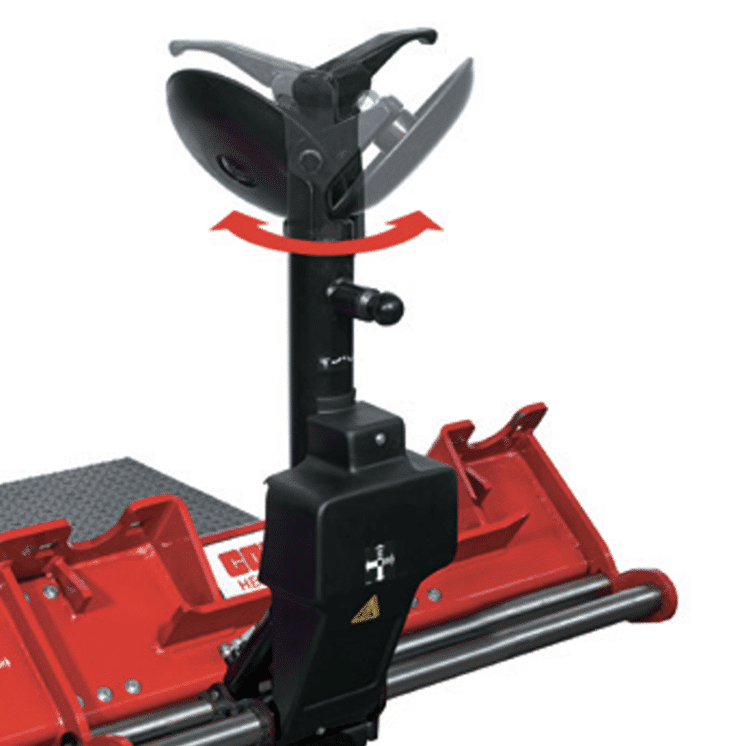

Remotely Controlled Tool Head

Remote control the rotating tool head for the fastest and easiest tool changes in the business.

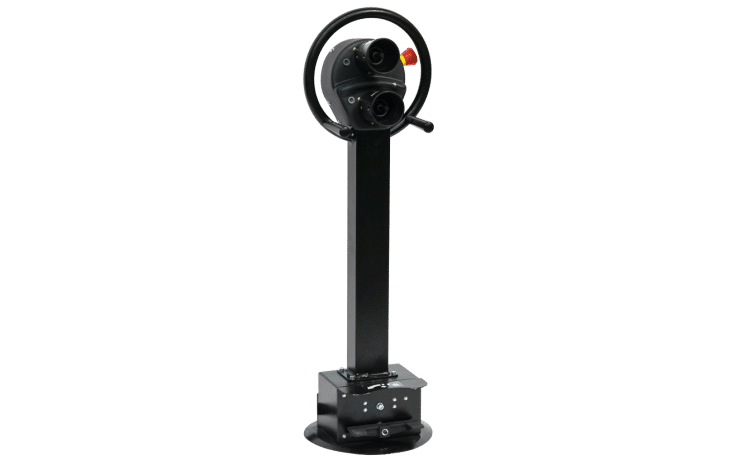

Wired or Wireless Control Station

Choose between an optional wireless remote gives you freedom to move around the machine without cumbersome cables or a wired, portable control station.

Top Of The Line Tire Changer

The CHD 9551 offers the most automated features and widest range of fittings in the CHD line, making it easy to handle the toughest super-single, skidder, agricultural, and off-road tires on the market.

***30 DAY LEAD TIME***
